onjig Posted February 25, 2015 Report Share Posted February 25, 2015 Might be interesting to a couple of you. Here's what I'm working on: Quote Link to comment Share on other sites More sharing options...
onjig Posted February 25, 2015 Author Report Share Posted February 25, 2015 (edited) It wants to be a Band Mill~ a sawmill. It will run on a track that a log is laid on, and it will cut the log into lumber. There will be two wheels on the carriage, the band blad can be lifted and lowered. The mill will be powered by a Kohler Magnum 18hp engine shown, it has electric start and a spin on filter. Edited February 25, 2015 by onjig Quote Link to comment Share on other sites More sharing options...
onjig Posted February 25, 2015 Author Report Share Posted February 25, 2015 (edited) It wants to be a Band Mill~ a sawmill. It will run on a track that a log is laid on, and it will cut the log into lumber. There will be two wheels on the carriage, the band blade can be lifted and lowered to adjust for the thickness of the board.. Edited February 25, 2015 by onjig Quote Link to comment Share on other sites More sharing options...

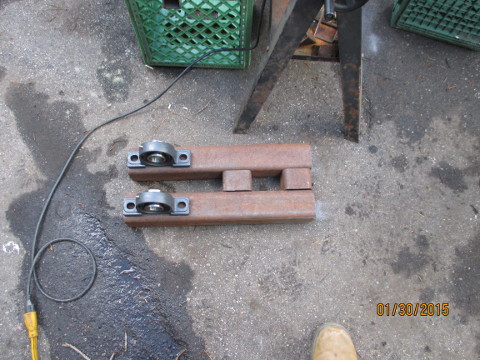

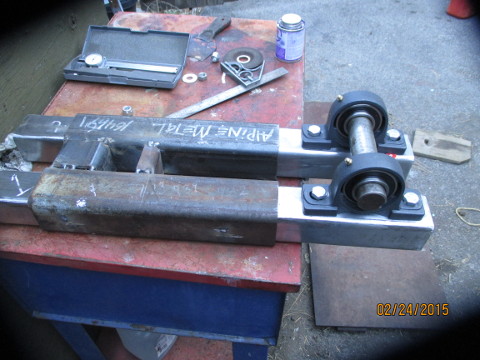

onjig Posted February 25, 2015 Author Report Share Posted February 25, 2015 The forks are clamped on, they will be welded. This is the drive wheel. The other wheel will telescope to loosen and tighten the blade. Quote Link to comment Share on other sites More sharing options...
Yervant1 Posted February 25, 2015 Report Share Posted February 25, 2015 Interesting! sorry I have no trees to cut down for lumber. 1 Quote Link to comment Share on other sites More sharing options...
onjig Posted February 25, 2015 Author Report Share Posted February 25, 2015 We have many. We heat with wood. It seem a shame to buy lumber and cut up trees for firewood. Quote Link to comment Share on other sites More sharing options...
MosJan Posted February 25, 2015 Report Share Posted February 25, 2015 looks good like to see this final product Quote Link to comment Share on other sites More sharing options...
onjig Posted February 25, 2015 Author Report Share Posted February 25, 2015 looks good like to see this final product Me too! I want to complete this. Quote Link to comment Share on other sites More sharing options...
MosJan Posted February 26, 2015 Report Share Posted February 26, 2015 Quote Link to comment Share on other sites More sharing options...
onjig Posted March 4, 2015 Author Report Share Posted March 4, 2015 (edited) The left side will be adjustable. I'll arrange a Tee Handle to tighten and loosen the blade. It will take a 158" blade. Edited March 4, 2015 by onjig 1 Quote Link to comment Share on other sites More sharing options...
onjig Posted May 6, 2015 Author Report Share Posted May 6, 2015 Keech keech: 1 Quote Link to comment Share on other sites More sharing options...

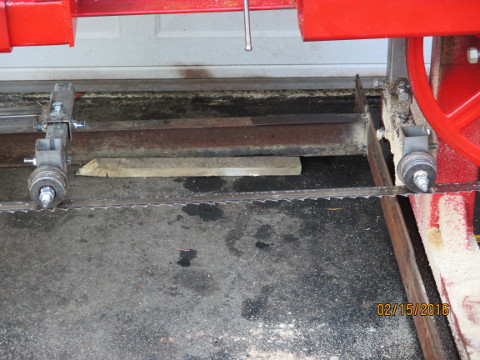

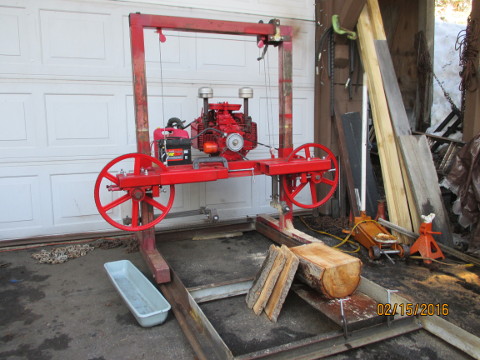

onjig Posted February 19, 2016 Author Report Share Posted February 19, 2016 Here's an update on the mill. The snow is my excuse for no completing it yet. I set the mill on a piece of track to test, If the blade would track[ stay on the bandwheels]. and what the mill needs. I do need blade guards, Blade lube, log stops,[ to hold a log on the track] It does cut, like a knife. You can see it's almost together. I should be able to cut a 30" diameter log 8' 10' 12' or what ever length of the final track permits. 1 Quote Link to comment Share on other sites More sharing options...
onjig Posted March 19, 2016 Author Report Share Posted March 19, 2016 A little progress. 1 Quote Link to comment Share on other sites More sharing options...
onjig Posted March 19, 2016 Author Report Share Posted March 19, 2016 Still need to build log dogs and a tensioner for the drive belt. It cuts a log like it was butter. 1 Quote Link to comment Share on other sites More sharing options...
MosJan Posted March 19, 2016 Report Share Posted March 19, 2016 WOW !!! Quote Link to comment Share on other sites More sharing options...
